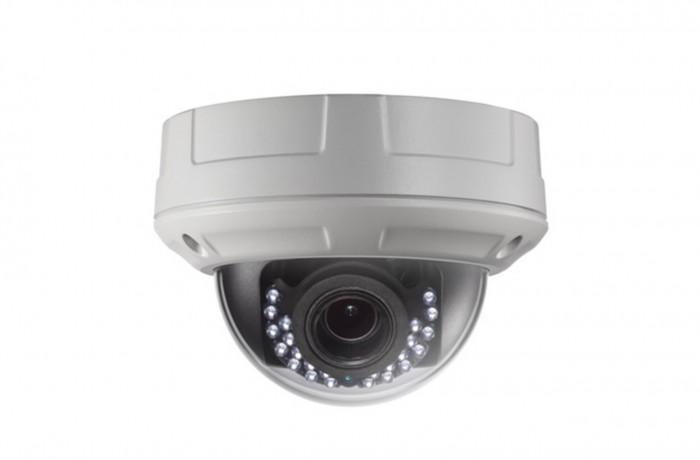

AV574WDIP-2812SZ – 4MP WDR Motorized Dome Camera

AV574WDIP-2812SZ is a high performance 4 megapixel Onvif compliant motorized dome camera. This model is equipped with high resolution CMOS sensor, allowing a resolution of up to 2688 x 1520 and 2.8-12mm motorized lens. The H.264+ dynamic video compression encodes and decodes audio and video to deliver superior image quality at a low bit rate. This camera also features 120dB Wide Dynamic Range, 3D Digital Noise Reduction, PoE compatibility and supports dual video streams. Additional functions IP66, Audio/Alarm I/O, 3-axis and up to 100ft IR range, provides ideal surveillance for sites anywhere from street traffic, through shopping malls, to buildings and office interiors. Besides NVR, SD (up to 128GB) card for local recording is optional.

  • 1/3” Progressive Scan CMOS
  • Up to 4 megapixel resolution
  • 120dB WDR
  • 3D DNR
  • Motorized lens 2.8-12mm
  • Up to 30 meters IR range
  • Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
  • Audio/alarm I/O
  • Mobile Monitoring via EZVIZ P2P or iVMS-4500
  • 12V DC±10% & PoE(802.3af)
  • Support H.264+
  • IP66
  • IK10

Wall Mount - AM273W-135

In-Ceiling Mount - AM227R

Wall Mount + Junction Box - AM273W-135B

Junction box - AM280J-DM21
