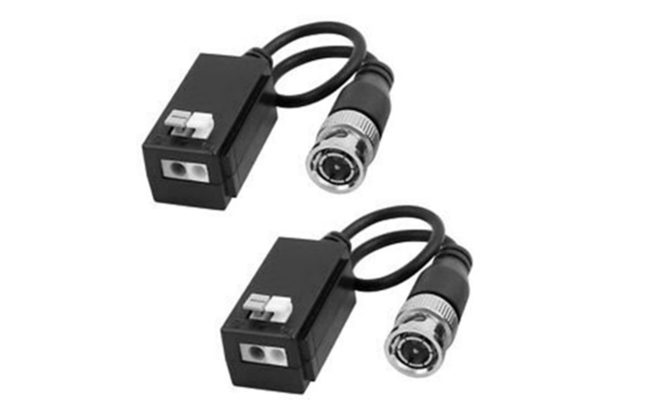

AVB301P – HD Video Transceiver W/ PIGTAIL



AVUE AVB301P is a single channel passive video transceiver designed to be compatible with worldwide video signal formats including HDTVI, HDCVI, AHD, and Analog. It utilizes CAT5/5e/6/UTP cable as a transmission medium for long distance transmission, easy installation, low cost and high performance, strong anti-interference and high quality. Widely used in the security industry and other complex system environments.

  • Wave interference rejection and noise filter protection
  • Transmission Signal: 1 Vpp composite video
  • Transmission distance up to 300m/1000 ft. working with passive transceivers
  • 720p/1080p/3MP/4MP/5MP
  • Transmission distance up to 600m/2000 ft. working with active transceivers
  • Compatible with worldwide formats including PAL, NTSC, and SFCAM
  • Built-in surge and transient protection
