AVB302P – Passive HD Video Balun with Power

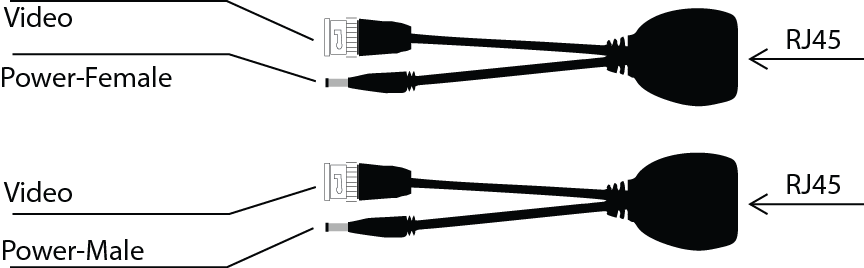

  • AVB302P-1
  • AVB302P-2
  • AVB302P-Main2
  • with Model number
  • with package back

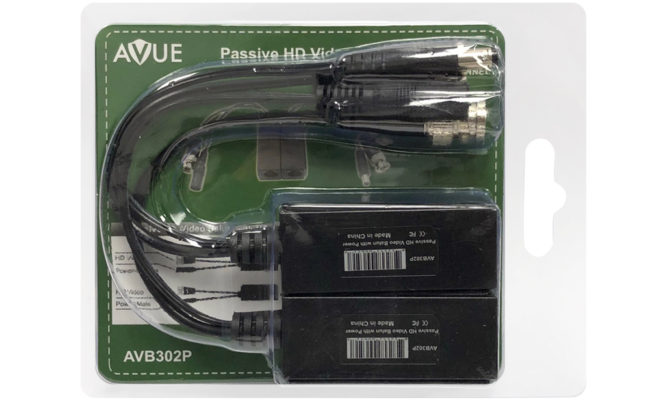

  • with package Front

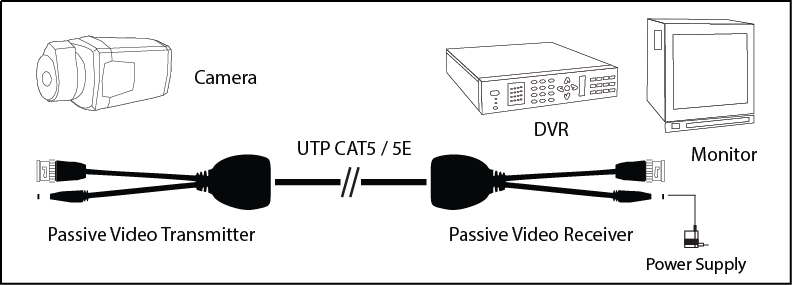

AVB302P is a single channel passive HD video transceiver designed to be compatible with worldwide video signal formats including HDTVI, HDCVI, AHD, and Analog. It utilizes CAT5/5e/UTP cable as transmission medium for long distance transmission, easy installation, low cost and high performance, strong anti-interference and high quality. Additionally, this model can transmit AC 24V or DC 12V. Widely used in security industry and other complex system environment.

  • Transmission Distance: HDCVI 720P: 400m/1080P: 250m; HDTVI 720P/1080P: 250m; AHD 720P: 350m/1080P: 200m; CVBS: 500m
  • Power transmission up to 100m
  • Supports power supply on 12V SC or 24VAC
  • Built-in surge and transient protection
  • Super interference rejection
  • LED indicate whether working (green light) or not working (yellow light)
