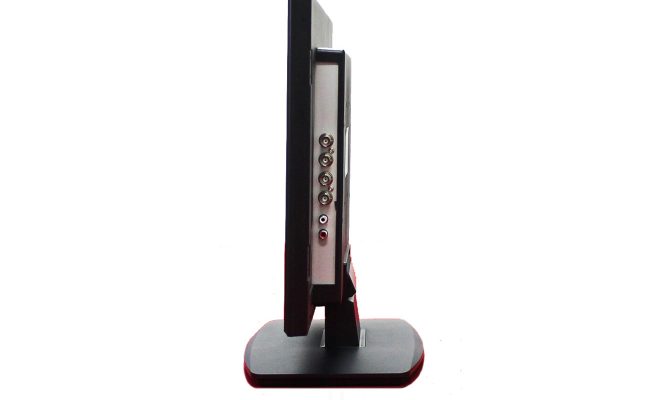

AVG20WBV-3D – 19.5 Inch Full HD 1080P CCTV LED Monitor with BNC/CVBS

AVG20WBV-3D is a replacement model for AVG19WBV-3D. AVG20WBV-3D is an inch wider diagonally. The larger display is a more vibrant Full HD 1080P LED screen with improved viewing angle of 170° both horizontal and vertical. The menu interface is vastly improved with easier UI navigation and front panel buttons. Pictures and color temperature settings allow visual adjustment to your need. It now has two HDMI input, a VGA, and two BNC/CVBS inputs with respective repeating (looping) outputs. Additionally, AVK22S10W now includes a USB 2.0 and a SD Card reader. Two 2.5 watts speakers provides stereo sound. Audio input includes 3.5mm headphone jack. Plus, there are a pair of RCA audio out for left and right audio channels. HDMI cable is included.

  • 19.5 inch High Resolution LED Monitor (1000 TVL)
  • 1920 x 1080 Full HD
  • 3D Noise Filter
  • HDMI, VGA, 2x BNC/CVBS, Audio, USB, SD Card Inputs
  • 1920 x 1080 Full HD
  • 2x Looping BNC Inputs
  • LED Backlight
  • Multi-Language OSD
  • 1x Audio Input
  • Built-In Stereo Speakers
  • Manual
  • Power Cord & Power Adapter
  • HDMI Cable
  • Monitor Stand
Model AVG20WBV-3D
Panel Size 19.5"
Aspect Ratio 16:9
Resolution 1920 x 1080
TV Lines 1000TVL
Contrast 1000:1
Brightness 250CD / M2
Response Time 5 milliseconds
Color 16.7 M
Viewing Angles 170° Vertical / 170° Horizontal
Composite Inputs 2x HDMI, 2x BNC/CVBS, 1x VGA, 3x Audio
1x USB, 1x SD Card Reader
Composite Outputs 2x BNC/CVBS (Looping)
Audio 2x Inputs
Speakers 2x 2.5 Watts Stereo Speakers
Power Consumption < 18 Watts
Mount Specification 100 x 100 cm VESA Standard
Picture Auto Adjust YES
OSD Control YES
Remote Control YES
Package Includes Power Cord
Power Adapter (DC 12V 3A)
Snap On Monitor Stand
User's Manual
HDMI Cable (1.5 Meter)
IR Remote Control
Dimension Package: 53 x 12 x 44 cm / 20.9 x 4.7 x 17.3 inch
Weight Package: 4.45 kg / 9.8 pounds
Certifications FCC-DOC, CE, ROHS
