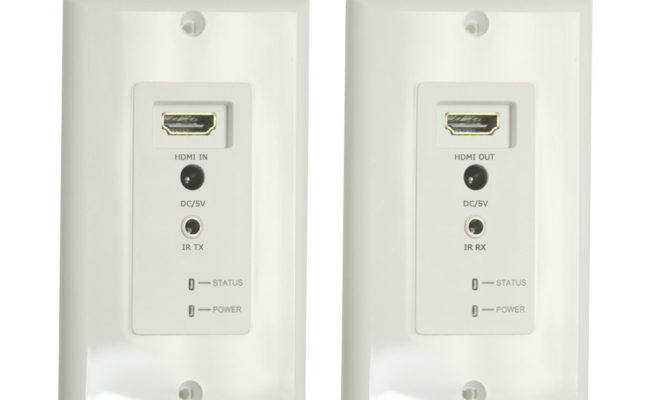

HDMI- EC200W – HDMI Extender Wall Plate over Cat5e/6

AVUE HDMI-EC200W is an HDMI extender wall plate that uses a single CAT5e/6/7 cable for up to 200 feet between the Sender TX and Receiver RX unit. It supports a wide spectrum of HDMI input formats that include 1080p, 1080i, 720p, 576p, 576i, 480p, and 480i at 24, 50, or 60 frames; and it also supports variety of audio formats that include DTS-HD, Dolby-trueHD, LPCM 7.1, DTS, Dolby-AC3, and DSD. Additionally, it is 3D content ready.

  • Supported Video Input: 1080p/1080i/720p/576p/576i/480p/480i @ 24/50/60fs
  • Supported Video Output: 1080p/1080i/720p/576p/576i/480p/480i @24/50/60fs
  • Use Single CAT7/6/5e cable up to 200 feet between sender and receiver unit
  • Supported Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Supports 3D
  • LED status indicator
  • No loss of quality
  • Installs in minutes

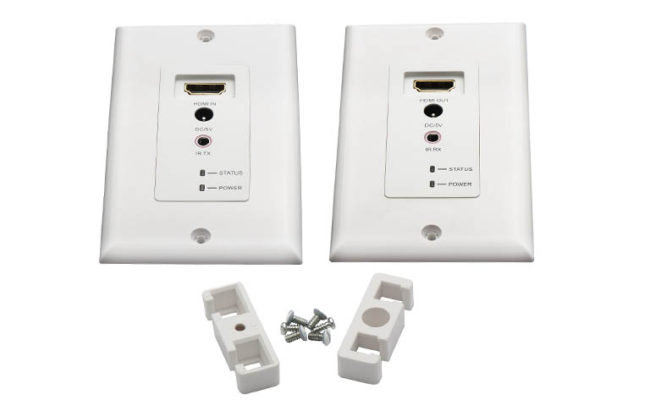

  • 1x Sender TX Unit
  • User's Manual
  • 1x Receiver RX Unit
  • 2x DC 5V Power Adapters
