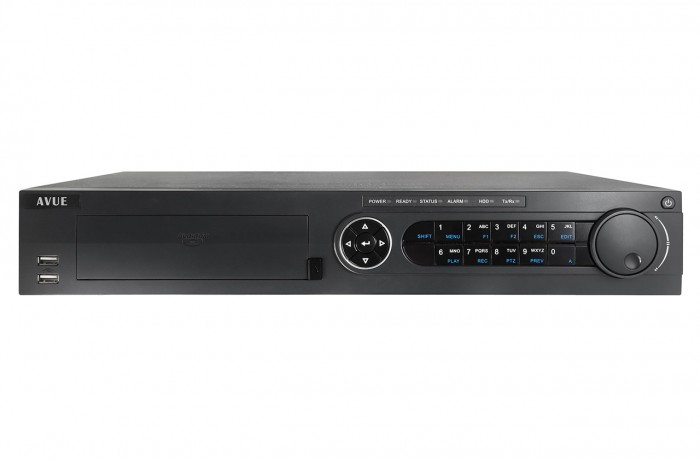

ANR7732-E4P16 – 32 Channel Smart NVR

ANR7732-E4P16 – 32 Channel Smart NVR
, , , ,

A new generation 32 channel recorder with 16 PoE. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology, it can both work alone as a recorder and cooperate with other device to build a comprehensive surveillance system. ANR7732-E4P16 series NVR can be widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

[accordions] [accordion title=”FEATURES” visible=”yes”] [row_fluid] [one_half] [custom_list]
  • Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
  • Up to 32 network cameras can be connected.
  • Support live view, storage, and playback of the connected camera at up to 6 megapixels resolution.
  • Simultaneous HDMI and VGA at 1920 × 1080 resolution.
  • New GUI and support starting record with one key.
  • Redundant recording, holiday recording and capture schedule configuration.
  • Realize instant playback for assigned channel during multi-channel display mode.
  • Up to 16-ch synchronous playback at 4CIF resolution.
  • Smart search for the selected area in the video.
  • Customization of tags, searching, and playing back by tags.
[/custom_list] [/one_half] [one_half] [custom_list]
  • Locking and unlocking record files.
  • Support HDD quota and group modes; different capacity can be assigned to different channel
  • 4 SATA hard disks and 1 eSATA disk (optional) can be connected, for both recording and backup
  • 1 self-adaptive 10M/100M/1000M network interface
  • Up to 16 independent PoE network interfaces provided
  • Support DDNS (Dynamic Domain Name Server)
  • Support network detection, including network delay, packet loss, etc
  • Support VCA alarm for up to 16 VCA detections
  • Support 5 VCA search types: behavior search, face search, people counting, heat map and plate search
  • Support enabling H.264+ to ensure high video quality with lowered bitrate
[/custom_list] [/one_half] [/row_fluid] [/accordion] [accordion title=”ACCESSORIES” ] [row_fluid] [custom_list] wdpurple_coveron_highfront_2tb_higres
Optional: Pre-Installed WD Purple
WDHDD 1TB, 2TB, 4TB


[/custom_list] [/row_fluid] [/accordion] [accordion title=”TYPICAL CONNECTIONS” ]
[custom_list] [/accordion] [accordion title=”PHYSICAL INTERFACES” ]
[/accordion] [accordion title=”SPEC TABLE”]
[/accordion] [accordion title=”DOWNLOADS”] [row_fluid] [one_half] [custom_list]

[/custom_list] [/one_half] [one_half] [custom_list] [/custom_list] [/one_half] [/row_fluid] [/accordion] [/accordions]
